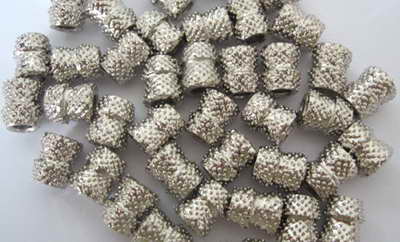

Vacuum Brazed Diamond Beads

With special diamond brazeing technology,diamond is firmly brazed onto the center.The special tower-shape and the technology of diamond ordered distribution make the space between diamond grains become larger,the cutting efficiency higher and the working life longer.


Art No.
Dia. (Bead)
Length
Effective Length
20260001
9.8/8.8mm
12.5mm
12.5mm
20260002
9.8/8.8mm
12.5mm
12.5mm
Tested value of brazed diamond wire saw
Length<20m
Cutting marble like BEIGE
40m2/h
Length20-30m
60m2/h
Length30-50m
70m2/h
Length50-70m
80m2/h
Length70-90
90m2/h
Length>90mm
100m2/h

2. Vacuum Brazed Diamond Wire Saw
This Wire Saw is mainly used for quarrying,block sawing construction cutting,ect.With the years of research and application of wire saw and the world-advanced technology of diamond brazing,this brazed diamond wire saw adopts the patent technology of"ZL200420054291.4"with excellent performance,high efficiency and long working life.
Art No.
Dia. (Bead)
Dia. (Steel Wire)
pcs/m
Coated
20261001
9.8/8.8mm
4.9/3.8mm
33
Polyurethane rubber
20261002
9.8/8.8mm
4.9/3.8mm
33
spring
20261003
9.8/8.8mm
4.9/3.8mm
33
Polyurethane rubber
20261004
9.8/8.8mm
4.9/3.8mm
33
spring

Efficiency
For marble quarrying
8-20m2/h
For granite quarrying
4-10m2/h
Working life
For marble quarrying
50-130m2/h
For granite quarrying
10-30m2/h
