OSTAR Tools --> Products --> Cutting for masonry --> Hammer steel chisel

hammer steel chisels, sds-plus shank

* heavy-duty quality.
* chisels are made of high grade special steel and
have a wear-resistant, shot-blasted surface finish.
* high removal capacity thanks to optimal weight
distribution.
* only used on machines with rotation stop facility.
* for light chiselling and gouging application on
concrete, masonry and natural stone.

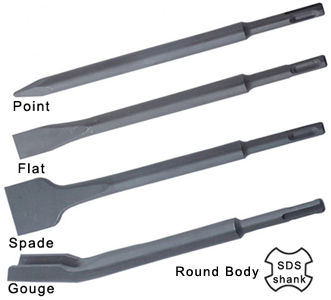

1. pointed chisel
starts holes in concrete slabs, general chipping & breaking.

2. flat chisel
for general chipping & breaking work.

3. scaling (spade) chisel
for removing large quantities of materials.

4. gauge
for cutting narrow channels into concrete.

1. pointed chisel

Art Number	Size
41001001	14 x 250
41001002	14 x 280
41001003	14 x 350
41001004	14 x 400
41001005	14 x 460
41001006	17 x 250
41001007	17 x 280
41001008	17 x 350
41001009	17 x 400
41001010	17 x 460
41001011	17 x 500
41001012	18 x 250
41001013	18 x 280
41001014	18 x 350
41001015	18 x 400

Art Number	Size
41001016	18 x 460
41001017	18 x 500
41001018	18 x 600
41001019	19 x 280
41001020	19 x 350
41001021	19 x 400
41001022	19 x 460
41001023	19 x 500
41001024	19 x 600
41001025	21 x 280
41001026	21 x 350
41001027	21 x 400
41001028	21 x 460
41001029	21 x 500
41001030	30 x 410

2. flat chisel

Art Number	Size
41002001	14 x 250
41002002	14 x 280
41002003	14 x 350
41002004	14 x 400
41002005	14 x 460
41002006	17 x 250
41002007	17 x 280
41002008	17 x 350
41002009	17 x 400
41002010	17 x 460
41002011	17 x 500
41002012	18 x 250
41002013	18 x 280
41002014	18 x 350
41002015	18 x 400

Art Number	Size
41002016	18 x 460
41002017	18 x 500
41002018	18 x 600
41002019	19 x 280
41002020	19 x 350
41002021	19 x 400
41002022	19 x 460
41002023	19 x 500
41002024	19 x 600
41002025	21 x 280
41002026	21 x 350
41002027	21 x 400
41002028	21 x 460
41002029	21 x 500
41002030	30 x 410

3. scaling (spade) chisel

Art Number	Size	Edge Width
41003001	14 x 250	30, 40, 50, 75mm
41003002	14 x 280	30, 40, 50, 75mm
41003003	14 x 350	30, 40, 50, 75mm
41003004	14 x 400	30, 40, 50, 75mm
41003005	14 x 460	30, 40, 50, 75mm
41003006	17 x 250	30, 40, 50, 75mm
41003007	17 x 280	30, 40, 50, 75mm
41003008	17 x 350	30, 40, 50, 75mm
41003009	17 x 400	30, 40, 50, 75mm
41003010	17 x 460	30, 40, 50, 75mm
41003011	17 x 500	30, 40, 50, 75mm
41003012	18 x 250	30, 40, 50, 75mm
41003013	18 x 280	30, 40, 50, 75mm
41003014	18 x 350	30, 40, 50, 75mm
41003015	18 x 400	30, 40, 50, 75mm

Art Number	Size	Edge Width
41003016	18 x 460	30, 40, 50, 75mm
41003017	18 x 500	30, 40, 50, 75mm
41003018	18 x 600	30, 40, 50, 75mm
41003019	19 x 280	30, 40, 50, 75mm
41003020	19 x 350	30, 40, 50, 75mm
41003021	19 x 400	30, 40, 50, 75mm
41003022	19 x 460	30, 40, 50, 75mm
41003023	19 x 500	30, 40, 50, 75mm
41003024	19 x 600	30, 40, 50, 75mm
41003025	21 x 280	30, 40, 50, 75mm
41003026	21 x 350	30, 40, 50, 75mm
41003027	21 x 400	30, 40, 50, 75mm
41003028	21 x 460	30, 40, 50, 75mm
41003029	21 x 500	30, 40, 50, 75mm
41003030	30 x 410	30, 40, 50, 75mm

4. gauge

Art Number	Size
41004001	14 x 250
41004002	14 x 280
41004003	14 x 350
41004004	14 x 400
41004005	14 x 460
41004006	17 x 250
41004007	17 x 280
41004008	17 x 350
41004009	17 x 400
41004010	17 x 460
41004011	17 x 500
41004012	18 x 250
41004013	18 x 280
41004014	18 x 350
41004015	18 x 400

Art Number	Size
41004016	18 x 460
41004017	18 x 500
41004018	18 x 600
41004019	19 x 280
41004020	19 x 350
41004021	19 x 400
41004022	19 x 460
41004023	19 x 500
41004024	19 x 600
41004025	21 x 280
41004026	21 x 350
41004027	21 x 400
41004028	21 x 460
41004029	21 x 500
41004030	30 x 410

Packing & SDS Chisel Set

Plastic tube (Atr No.: 41008001)	Plastic bag (Atr No.: 41008002)	Blister with card (Atr No.: 41008003)


Plastic bag (Atr No.: 41008004)	Plastic tube (Atr No.: 41008005)	Blister with card (Atr No.: 41008006)
