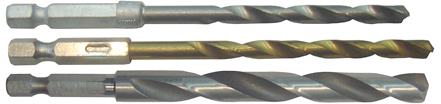

HSS Hex Shank Drills
* hot roll-forged flute with special heat treatment gives additional toughness with increased durability of the drill bit.
* 118 degree point angle design for general purpose.
* black oxide finish for greater resistance to wear.
* economical high speed steel bit for general drilling.
* for drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastic.

* 135 degree split point starts on contact in all types of metal, no walking or skating
* fully ground body, black oxide for the most accurate hole dimensions and high concentricity.
* hardened high speed steel body provides additional safeguard.
* for general using in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastic.



 dia.

working length

overall length

Article Number

1.5
18
61
30111001
2.0
24
70
30111002
2.5
30
78
30111003
3.0
33
82
30111004
3.2
36
86
30111005
3.5
39
91
30111006
4.0
43
96
30111007
4.5
47
101
30111008
4.8
52
107
30111009
5.0
52
107
30111010
5.5
57
114
30111011
6.0
57
114
30111012
6.5
63
122
30111013


 dia.

working length

overall length

Article Number

1/16"
 7/8"
1-7/8"
30111014
5/64"
 1"
 2"
30111015
3/32"
1-1/4"
2-1/4"
30111016
7/64"
1-1/2"
2-5/8"
30111017
1/8"
1-5/8"
2-3/4"
30111018
9/64"
 1-3/4"
2-7/8"
30111019
5/32"
2"
3-1/8"
30111020
11/64"
2-1/8"
3-1/4"
30111021
3/16"
2-5/16"
3-1/2"
30111022
13/64"
 2-7/16"
3-5/8"
30111023
7/32"
2-1/2"
 3-3/4"
30111024
15/64"
2-5/8"
 3-7/8"
30111025
1/4"
2-3/4"
4"
30111026

Quick Change Chuck Adapter
