DIN351/ BSW HAND TAPS |
| --------------
3 Piece, High Speed Steel |
|
| Size |
Overall
Length |
Thread
Length |
Art
Number |
| 1/16-60BSW |
32 |
10 |
3031-001 |
| 3/32-48BSW |
36 |
11 |
3031-002 |
| 1/4-40BSW |
40 |
12 |
3031-003 |
| 5/32-32BSW |
45 |
14 |
3031-004 |
| 3/16-24BSW |
50 |
18 |
3031-005 |
| 7/32-24BSW |
50 |
18 |
3031-006 |
| 1/4-20BSW |
56 |
22 |
3031-007 |
| 5/16-18BSW |
63 |
25 |
3031-008 |
| 3/8-16BSW |
70 |
28 |
3031-009 |
| 7/16-14BSW |
75 |
30 |
3031-010 |
| 1/2-12BSW |
80 |
32 |
3031-011 |
| 9/16-12BSW |
80 |
32 |
3031-012 |
| 5/8-11BSW |
90 |
36 |
3031-013 |
| 3-4-10BSW |
105 |
40 |
3031-014 |
| 7/8-9BSW |
110 |
45 |
3031-015 |
| 1-8BSW |
110 |
50 |
3031-016 |
| 1-1/8-7BSW |
132 |
56 |
3031-017 |
| 1-1/4-7BSW |
132 |
56 |
3031-018 |
| 1-3/6-6BSW |
150 |
63 |
3031-019 |
| 1-1/2-6BSW |
150 |
63 |
3031-020 |
| 1-5/8-5BSW |
160 |
70 |
3031-021 |
| 1-3/4-5BSW |
160 |
70 |
3031-022 |
| 1-7/8-4-1/2BSW |
190 |
80 |
3031-023 |
| 2î-4-1/2BSW |
190 |
80 |
3031-024 |
|
| |
|
DIN351/ UNC HAND TAPS |
| --------------
3 Piece, High Speed Steel |
| Size |
Overall
Length |
Thread
Length |
Art
Number |
| No.1-64UNC |
32 |
10 |
3021-001 |
| No.2-56UNC |
36 |
11 |
3021-002 |
| No.3-48UNC |
36 |
11 |
3021-003 |
| No.4-40UNC |
40 |
12 |
3021-004 |
| No.5-40UNC |
40 |
12 |
3021-005 |
| No.6-32UNC |
45 |
14 |
3021-006 |
| No.8-32UNC |
45 |
14 |
3021-007 |
| No.10-24UNC |
48 |
16 |
3021-008 |
| No.12-24UNC |
50 |
18 |
3021-009 |
| 1/4-20UNC |
56 |
22 |
3021-010 |
| 5/16-18UNC |
63 |
25 |
3021-011 |
| 3/8-16UNC |
70 |
28 |
3021-012 |
| 7/16-14UNC |
75 |
30 |
3021-013 |
| 1/2-13UNC |
80 |
32 |
3021-014 |
| 9/16-12UNC |
80 |
32 |
3021-015 |
| 5/8-11UNC |
90 |
36 |
3021-016 |
| 3/4-10UNC |
105 |
40 |
3021-017 |
| 7/8-9UNC |
110 |
45 |
3021-018 |
| 1î-8UNC |
110 |
50 |
3021-019 |
| 1-1/8-7UNC |
132 |
56 |
3021-020 |
| 1-1/4-7UNC |
132 |
56 |
3021-021 |
| 1-3/8-6UNC |
150 |
63 |
3021-022 |
| 1-1/2-6UNC] |
150 |
63 |
3021-023 |
| 1-3/4-5UNC |
160 |
70 |
3021-024 |
| 2î-4-1/2UNC |
190 |
80 |
3021-025 |
|
| |
|

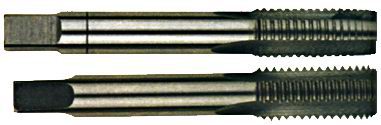

DIN351/ UNF HAND TAPS |
| --------------
2 Piece, High Speed Steel |
|
| Size |
Overall
Length |
Thread
Length |
Art
Number |
| No.0-80UNF |
28 |
8 |
3021-026 |
| No.1-72UNF |
32 |
10 |
3021-027 |
| No.2-64UNF |
32 |
10 |
3021-028 |
| No.3-56UNF |
32 |
10 |
3021-029 |
| No.4-48UNF |
36 |
11 |
3021-030 |
| No.5-44UNF |
40 |
12 |
3021-031 |
| No.6-40UNF |
40 |
12 |
3021-032 |
| No.8-36UNF |
40 |
12 |
3021-033 |
| No.10-32UNF |
45 |
14 |
3021-034 |
| No.12-28UNF |
50 |
16 |
3021-035 |
| 1-4/28UNF |
56 |
18 |
3021-036 |
| 5/16-24UNF |
56 |
18 |
3021-037 |
| 3/8-24UNF |
63 |
18 |
3021-038 |
| 7/16-20UNF |
63 |
18 |
3021-039 |
| 1/2-20UNF |
63 |
20 |
3021-040 |
| 9/16-18UNF |
70 |
20 |
3021-041 |
| 5/8-18UNF |
70 |
20 |
3021-042 |
| 3/4-16UNF |
80 |
22 |
3021-043 |
| 7/8-14UNF |
80 |
22 |
3021-044 |
| 1î-14UNF |
90 |
22 |
3021-045 |
| 1î-12UNF |
90 |
22 |
3021-046 |
| 1-1/8-12UNF |
100 |
28 |
3021-047 |
| 1-1/4-12UNF |
100 |
28 |
3021-048 |
| 1-3/8-12UNF |
110 |
32 |
3021-049 |
| 1-1/2-12UNF |
110 |
32 |
3021-050 |
|
| |
