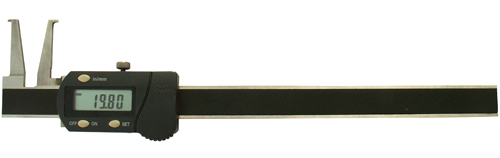

Special Digital Caliper,
Inside Groove |
|
Features:
 Circular
Cover
Inch/mm:inch/metric
conversion
ON/OFF:power
on and power off
SET:data
presetting
+:increasing
displayed value
-:reducing
displayed value
Power:1.5V
SR44 (sliver oxide cell)
Via
data connecting cable
Operating
+/- button need to open the battery cover |
 |
|
Art
No. |
Range |
Resolution |
Accuracy |

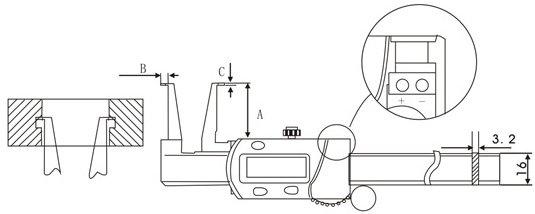

A |
B |
C |
814-312 |
150mm/6" |
0.01mm/0.0005" |
±0.03mm |
25mm |
3.5mm |
0.8mm |
814-322 |
200mm/8" |
0.01mm/0.0005" |
±0.03mm |
30mm |
4.0mm |
1.0mm |
814-332 |
300mm/12" |
0.01mm/0.0005" |
±0.04mm |
35mm |
4.5mm |
1.2mm |
|
|
|
| |
