Permanent
Magnetic Chucks |
| |
| High
powered ceramic magnets are used for making standard pole permanent
magnetic chucks. The magnetic and non magnetic stainless steel
are furnace brazed, making a solid, one piece construction.
The magnets can be drilled to a required depth. It is between
the poles or anywhere in the top that drilling or machining
is done. At the top plates there are no magnets. Handles on
all permanent magnetic chucks are removable. |
|
| Art
No. |
Magnetic
Poles |

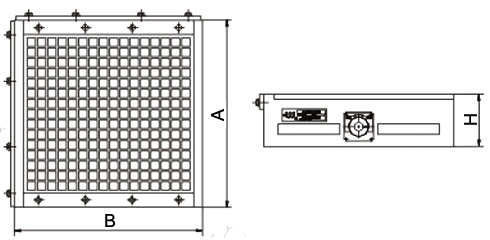

A
(mm) |
B
(mm) |
H
(mm) |
Weight
(Kg) |
Suction
(KN) |
| PMSC2040S |
136 |
200 |
400 |
100 |
47 |
>34 |
PMSC2525 |
90 |
250 |
250 |
100 |
37 |
>17.5 |
PMSC3030A |
132 |
300 |
300 |
90 |
55 |
>25.6 |
PMSC3535A |
182 |
350 |
350 |
90 |
73 |
>35 |
PMSC4040A |
240 |
400 |
400 |
90 |
94 |
>46.6 |
PMSC4050 |
300 |
400 |
500 |
110 |
110 |
>58.2 |
| PMSC4080A |
480 |
400 |
800 |
90 |
200 |
>93 |
PMSC40100 |
600 |
400 |
1000 |
110 |
215 |
>116.4 |
|
| |
| Magnetic
chucks are primarily designed for holding ferro-metallic work
pieces. They consist of an accurately centered permanent magnet
face. Fixed ferrous plates or pole pieces, contained within
a housing are brought into contact with electromagnets or permanent
magnets. These pole pieces are usually flush with the housing
surface. The part or work piece to be held forms the closing
of the magnetic loop or path, onto those fixed plates, providing
a secure anchor for the work piece. |
| |
Applications:
Grinding
Light milling
Spark erosion
Pallet loading |
| |
Features:
Suitable machine tools: machining centers, nc milling machines
Special-designed Chinese black panes, powerful magnetic force
for clamping, perfectly meet the requirements of machining centers
and nc milling machines for the clamping
Obviously improve the speed of clamping. The magnetic force
is invariable, equal and predictable. it is easy and quick for
you to replace workpieces and implement the five processing.
Usually it can help reduce the time of processing by above 70%~80%
Powerful magnetic force comes from square magnetic pole combination
made by proprietary technology with dense magnetic pole distribution,
strong magnetic field and it can release the internal stress
of the workpieces during processing and get high-precision workpieces
at last
The magnetic pole sets in phalanx ; magnetic bundles are mutually
perpendicular and densly interlaced which uniformly penetrating
the bottom of workpieces, shallowly but very densely. capable
to holding sheets in more than 2mm thickness for milling and
machining
The magnetic force is produced by high-energy magnetic materials,
no time limit, no energy-consumption, no heat, environment friendly
and safe, simple and practical in operation
Compared to the same kind of imported products, it has more
magnetic poles, more steady magnetic power and smaller remanence
Simple mechanical switch, no need in power supply and control
apparatus, lower cost and easier to get repaired |
| |
Use:
Suitable for high-precision and high-speed processing in a high-presicion
and high-speed machining center, achieving in implement the
five processings at a time.
Suitable for precise accessories and moulds, capable of clamping
in a short time
Suitable for powerful clamping and milling in machining centers
or mighty nc milling machines |
| |
