Permanent Magnetic Lifter

1. Construction:
Our permanent magnet lifter has strong magnetic path produced by NdFeB magnet. On and off of the magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate, long-period effort and without power supply. They are used to lift and transport the steel and iron for factories, docks, ware houses, transportation, etc.

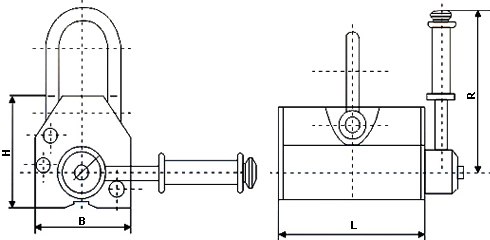

Art No.
Rated Lifting Strength (Kg)
L (mm)
B (mm)
H (mm)
R (mm)
Max Cylindrical Dia. (mm)
Max Pull-off Strength (Kg)
Lifter Weight (Kg)
PML-100
100
84
62
67
142
>50
350
2.6
PML-300
300
154
92
91
167
>60
1050
9.6
PML-600L
600
267
129
92
216
>70
2100
21
PML-1000L
1000
342
142
118
307
>90
3500
41
PML-2000
2000
368
234
212
451
>120
7000
130
PML-3000
3000
448
286
264
521
-
-
249
PML-6000
6000
550
430
360
550
-
-
420
Note:
1. The safe coefficient of magnetic lifter is 3.5.
2. Dimensions can be changed according to customers' needs.

Parts on Worktabel
Lifting the Parts
Lifting & Moving Parts
Lifting Round Parts

3. Operations
3.1 During operation, you should clear away the components surface such as rust and burr. The centerline of lifter had better overlap with the centerline of component. Then place the magnetic lifting hoist on the face of component, turn the nozzle from "OFF" to "ON" until "Holding". Make sure that the security key on the handle is automatically locked, and then start to hoist.
3.2 During lifting and handing components, overloading is forbidden. Nobody is allowed to pass through under the component held by magnetic lifter. Components temperature and ambient temperature shall be lower than 80 ?. No strong vibration and impact.
3.3 When lifting and handling cylindrical components, keeping the cylindrical surface contacts the vee slot of lifter on two lines, the actual lifting capacity will generally be 30%-50% of the rated lifting capacity.
3.4 When lifting and handling operation is finished, press down the bottom to disengage the security key from the security pin, then turn the handle from "ON" to "OFF" until 'Release". The lifter is now in the neutral condition, it can be taken away from the component.

4. Main factors which influence the lifting capacity
4.1 Influenced by thickness and surface quality of the component. Before operation, it is necessary to find out the percentage of the steel thickness-lifting capacity according to the component and capacity curve. If its surface roughness Ra is less than 6.3 um, the lifter surface gap will not exist, the lifting capacity will be 100%. If the surface roughness Ra is above 6.3 um or even worse, the lifter surface gap should be estimated. Find out the percentage that lifting capacity of the lifter may reach from the air gap-lifting capacity curve shown in the performance chart. Combine these two factors and calculating the lifting capacity that the lifter may reach. The curves are on the two sides of lifter.
4.2 Influenced by the composition of steel component. After measurement, if low-carbon steel component is regarded as a reference and the coefficient of lifting capacity is fixed: the coefficient for medium-carbon steel is 0.95; the coefficient for high-carbon steel is 0.90; the coefficient for low-alloy steel is 0.75, and the coefficient for cast iron is 0.50.

5. Maintenance and safety notice:
5.1 While carrying and using permanent magnetic lifter beware of the bumping and roughness of surface, so as not to influence its property and life-span. After using, the lifter had better be protected by oil.
5.2 Please read the operating instruction carefully and know its property before using the lifter to avoid accident. Please contact our company for further detail.
5.3 Check the quality of the handle button frequently. Make sure that the security key can be moved flexibly and the security pin can be locked firmly.
5.4 When magnetic lifting hoist is not in contact with ferromagnetic material of component, don't turn the nozzle.
5.5 Maintenance must be strictly according to the instructions by the professional authorized technical personnel.
5.6 Prohibit modifying the lifter to avoid effecting on its safety.
