Presetting

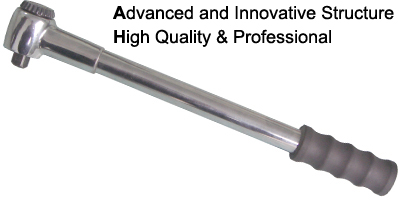

Torque Wrench |
| |
| |
Characteristic:
1:In service,the output torque value is on all fours
with the pre-setting torque value.
2:Environment,man-induced factor,and method of operation
are unacted on its stability.
3:Forward&backward pre-setting torquevalue,install
and take down bolt and nut safely and precisely.
4:Forward&backward ratchet design,install and
take down quickly.
5:With replaceable connector. |
|
| |
Art
No. |
Preset
Level |
Length |
Head
Width |
N.W. |
Dimension |
90601001 |
0.5-5
N.m |
180mm |
25.5mm |
0.35kg |
6.3mm |
90601002 |
1-18N.m |
220mm |
25.5mm |
0.5kg |
9.5mm |
90601003 |
3-50N.m |
340mm |
40mm |
1.0kg |
9.5mm |
90601004 |
5-100N.m |
440mm |
40mm |
1.5kg |
12.5mm |
90601005 |
10-150N.m |
540mm |
60mm |
2.3kg |
12.5mm |
90601006 |
10-200N.m |
640mm |
60mm |
2.8kg |
12.5mm |
90601007 |
20-300N.m |
750mm |
60mm |
3.0kg |
19mm |
|
| |
| Bolt
Standard Torque (Reference) |
|
Bolt
Size
|
Quality
Classes to DIN267 |
Sw
(mm)
|
| 3.6
|
5.6
|
6.9
|
8.8
|
10.9
|
12.9
|
Fv
|
Ma |
Fv |
Ma |
Fv |
Ma |
Fv |
Ma |
Fv |
Ma |
Fv |
Ma |
(N) |
(N.m) |
(N) |
(N.m) |
(N) |
(N.m) |
(N) |
(N.m) |
(N) |
(N.m) |
(N) |
(N.m) |
M2
|
255 |
0.10 |
345 |
0.15 |
710 |
0.30 |
835 |
0.35 |
1170 |
0.50 |
1415 |
0.60 |
4 |
M2.5
|
485 |
0.26 |
655 |
0.35 |
1310 |
0.71 |
1550 |
0.83 |
2180 |
1.18 |
2620 |
1.40 |
5 |
M3
|
630 |
0.37 |
1050 |
0.62 |
1700 |
0.99 |
2250 |
1.30 |
3150 |
1.90 |
3800 |
2.20 |
5.5 |
M3.5
|
850 |
0.57 |
1400 |
0.95 |
2250 |
1.50 |
3000 |
2.00 |
4250 |
2.90 |
5100 |
3.40 |
6 |
M4
|
1100 |
0.85 |
1850 |
1.40 |
2900 |
2.30 |
3900 |
3.0 |
5750 |
4.40 |
6700 |
5.10 |
7 |
M5
|
1800 |
1.70 |
3000 |
2.80 |
4800 |
4.50 |
6400 |
5.9 |
9400 |
8.70 |
11000 |
10 |
8/9 |
M6
|
2550 |
2.90 |
4200 |
4.80 |
6750 |
7.70 |
9000 |
10 |
13200 |
15 |
15500 |
18 |
10 |
M8
|
4650 |
7.00 |
7750 |
12 |
12400 |
19 |
16500 |
25 |
24300 |
36 |
28400 |
43 |
13/14 |
M10
|
7400 |
14 |
12300 |
23 |
19700 |
37 |
26300 |
49 |
38700 |
72 |
45200 |
84 |
15/17 |
M12
|
10800 |
24 |
18000 |
40 |
28800 |
65 |
38400 |
85 |
56500 |
125 |
66000 |
145 |
19/21 |
M14
|
14800 |
39 |
24700 |
64 |
39500 |
105 |
52500 |
135 |
77500 |
200 |
90500 |
235 |
22/23 |
M16
|
20400 |
59 |
34000 |
98 |
54500 |
155 |
72500 |
210 |
107000 |
310 |
125000 |
365 |
24/26 |
M18
|
24800 |
81 |
41300 |
135 |
66000 |
215 |
91000 |
300 |
129000 |
430 |
152000 |
500 |
27 |
M20
|
31900 |
115 |
53000 |
190 |
85000 |
305 |
117000 |
425 |
166000 |
610 |
195000 |
710 |
30 |
M22
|
39900 |
155 |
66500 |
260 |
106000 |
415 |
146000 |
580 |
208000 |
820 |
244000 |
960 |
32 |
M24
|
45900 |
200 |
76500 |
330 |
122000 |
530 |
168000 |
730 |
240000 |
1050 |
281000 |
1220 |
36 |
M27
|
60500 |
295 |
100000 |
490 |
161000 |
780 |
222000 |
1100 |
316000 |
1550 |
369000 |
1800 |
41 |
M30
|
73500 |
395 |
122000 |
660 |
196000 |
1050 |
269000 |
1450 |
384000 |
2100 |
449000 |
2450 |
46 |
M33
|
91500 |
540 |
153000 |
900 |
244000 |
1450 |
326000 |
1900 |
458000 |
2700 |
550000 |
3250 |
50 |
M36
|
107000 |
690 |
179000 |
1150 |
287000 |
1850 |
382000 |
2450 |
537000 |
3450 |
645000 |
4150 |
55 |
M39
|
129000 |
900 |
215000 |
1500 |
345000 |
2400 |
460000 |
3200 |
646000 |
4500 |
775000 |
5400 |
60 |
M42
|
148000 |
1100 |
247000 |
1850 |
395000 |
2950 |
526000 |
3950 |
740000 |
5550 |
888000 |
6650 |
60 |
M45
|
173000 |
1400 |
289000 |
2300 |
462000 |
3700 |
616000 |
4950 |
867000 |
6950 |
1050000 |
8350 |
70 |
M48
|
195000 |
1700 |
325000 |
2800 |
520000 |
4450 |
693000 |
5950 |
974000 |
8400 |
1150000 |
10100 |
75 |
M52
|
234000 |
2150 |
390000 |
3600 |
624000 |
5750 |
832000 |
7650 |
1169000 |
10800 |
1403000 |
12900 |
80 |
M56
|
270000 |
2700 |
450000 |
4500 |
719000 |
7150 |
959000 |
9550 |
1349000 |
13400 |
1618000 |
16100 |
85 |
M60
|
315000 |
3350 |
525000 |
5550 |
841000 |
8900 |
1121000 |
11900 |
1576000 |
16700 |
1892000 |
20000 |
90 |
M64
|
357000 |
4000 |
595000 |
6700 |
951000 |
10700 |
1268000 |
14300 |
1784000 |
21100 |
2140000 |
24100 |
95 |
|
| |
