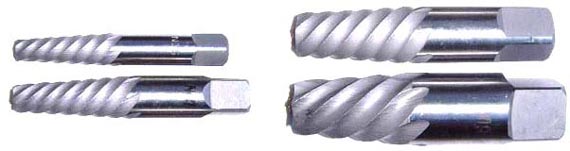

Damaged
Screw Remover |
|
.
For removing broken screws, bolts, and threaded parts;
. The extractor is inserted into a pre-drilled hole and the broken
part is backed out with a wrench;
. Also for turning threaded pipe sections; |
|
| Art
No. |
Screw
Extractor # |
For
Removing Screws Diameter |
Drill
Size to Use |
| 50701001 |
1 |
3/32"
to 5/32" |
1/16"
to 5/64" |
| 50701002 |
2 |
5/32"
to 7/32" |
3/32"
to 7/64" |
50701003 |
3 |
7/32"
to 9/32" |
9/64"
to 5/32" |
50701004 |
4 |
9/32"
to 3/8" |
7/32"
to 1/4" |
50701005 |
5 |
3/8"
to 5/8", 1/8" & 1/4" pipe |
17/64"
to 19/64" |
50701006 |
6 |
5/8"
to 7/8", 3/8" pipe |
25/64"
to 27/64" |
50701007 |
7 |
7/8"
to 1-3/8", 3/4" pipe |
33/64"
to 35/64" |
50701008 |
8 |
1-1/8"
to 1-3/8", 3/4" pipe |
25/32"
to 27/32" |
50701009 |
9 |
1-3/8"
and up, 1" pipe |
1-1/16"
to 1-1/8" |
|
| |
|
Screw Extractor Set |
|
Art
No.: 50702001 |
5pcs
Set #1 - #5 ( Heavy Duty) |
|
|
|
|
Art
No.: 50702002 |
6pcs
Set #1 - #6 ( Heavy Duty) |
|
|
|
|
Art
No.: 50702003 |
5pcs
Set #1 - #5 ( Light Duty) |
|
|
|
| |
|
|
|
Art
No.: 50702004 |
5pcs
Set #1 - #5 ( Heavy Duty) |
|
|
|
|
Art
No.: 50702005 |
6pcs
Set #1 - #6 ( Light Duty) |
|
|
|
|
Art
No.: 50702006 |
6pcs
Set #1 - #6 ( Heavy Duty) |
|
|
|
|
| |
